Description

4-Channel Constant Voltage DMX Decoder, Support RDM

Product Features

• Standard Compliance: Fully complies with DMX512 standard protocols.

• Digital Display: Clear digital numeric display for easy DMX address setting via buttons.

• RDM Capability: Supports RDM (Remote Device Management) for bi-directional communication between DMX master and decoder.

• Versatile Output: 1, 2, or 4 DMX channel output selectable to suit different lighting setups.

• High Precision Dimming: 16-bit (65536 levels) or 8-bit (256 levels) grey level selectable for smooth dimming.

• Anti-Flicker Technology: Selectable PWM frequency from 250Hz up to 32000Hz, ensuring flicker-free performance for video and camera applications.

• Customizable Dimming: Logarithmic or linear dimming curve selectable to match human eye perception.

• Stand-alone Modes: Built-in RGB/RGBW and 4-channel dimming modes for use without an external DMX signal.

• Built-in Protection: Integrated over-heat and short circuit protection with automatic recovery.

• Reliability: Industrial-grade design with a 5-year warranty.



Technical Specifications：

Parameter	Value
Input Voltage	12-48VDC
Input Current	20.5A
Output Voltage	4 x (12-48)VDC
Output Current	4 Channels, 5A per Channel
Output Power	4 x (60-240)W
Output Type	Constant Voltage
Dimming Range	0 – 100%
PWM Frequency	250Hz – 32000Hz (Selectable)
IP Rating	IP20
Dimensions	L175 x W54 x H27 mm
Working Temp	-20°C ~ +50°C

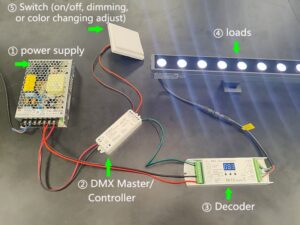

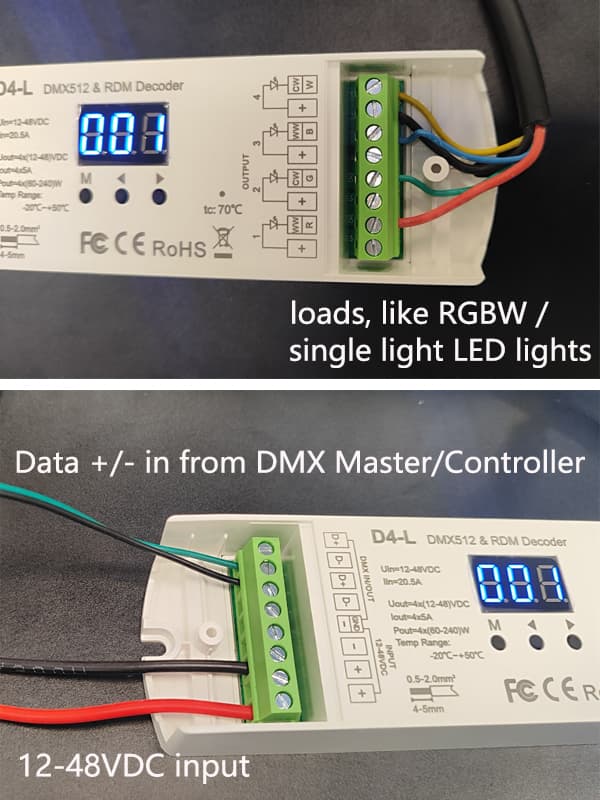

* A simple wiring with our RGBW LED wall wash light:





* Download User Manual （PDF）:
