Description

RGB RGBW RGB+CCT 3-in-1 DMX Master Controller Support WiFi 2.4G Tuya App Alexa Google Assistance Voice Control



Product Features

• RGB/RGBW/RGB+CCT 3-in-1 Control: Integrated WiFi, RF (2.4G), and Push switch control for maximum flexibility.

• Smart Life Integration: Fully compatible with the Tuya Smart App for cloud control, scheduling, and remote management.

• Voice Command Support: Works seamlessly with Amazon Alexa and Google Assistant for hands-free lighting control.

• Advanced Color Mixing: Supports “Painted Segment Color Mixing” – allowing full color filling, segment painting, and precise light management.

• Dynamic Scenarios: Features 44 default and 10+ custom dynamic scenarios with 16 variations to create stunning visual effects.

• Multi-Protocol Support: Complies with standard DMX512 protocols, ensuring compatibility with DMX decoders from various suppliers.

• Scalable Output: Supports up to 512 DMX output channels, controlling up to 170 RGB pixels, 128 RGBW pixels, or 102 RGB+CCT pixels.

• Music Rhythm: 3 APP-based music rhythm modes for an immersive audio-visual experience.

• External Push Switch: Connects with two external push switches for quick on/off, brightness adjustment, and mode switching.

• Reliability: 5-year warranty with industrial-grade safety standards.

Technical Specifications

Parameter	Value
Input Voltage	12-36VDC
Output Signal	DMX512 (Multipixel)
Input Signal	WiFi + RF 2.4G + Push Switch
Max Channels	512 Channels
Pixel Support	RGB (170), RGBW (128), RGB+CCT (102)
RF Control Distance	30m (Barrier-free)
WiFi Distance	15m (Barrier-free)
IP Rating	IP20
Dimensions	L114 x W38 x H20 mm
Working Temp	-20°C ~ +55°C



* Pro Installation Tip (Power Isolation):

For optimal performance and signal stability, the DMX512 Master and the DMX512 Decoder require separate, independent power supplies. Please ensure that dedicated power sources are utilized for each component in your lighting system to avoid potential signal interference and ensure reliable operation.

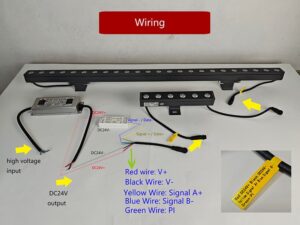

* A simple wiring  sample with our RGBW LED wall wash lights:



* Download User Manual (PDF)
